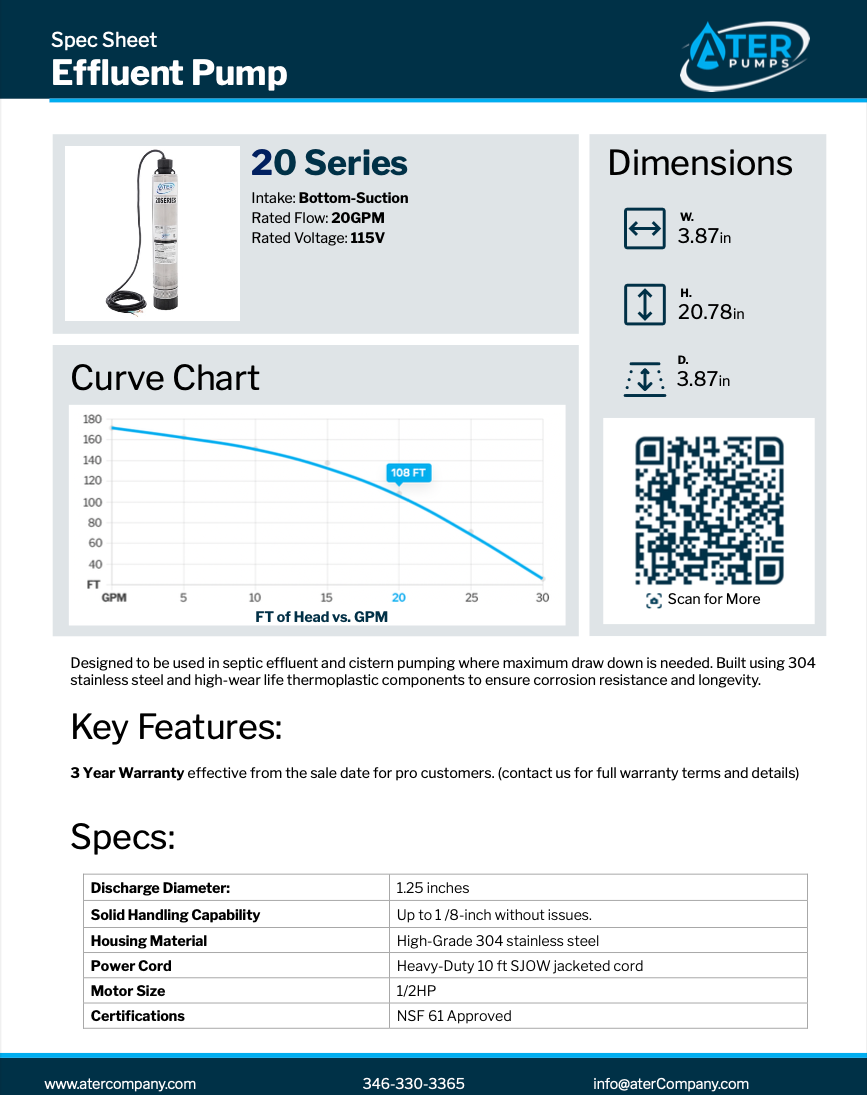

20-Series Septic Effluent Pump

Ater Pump 20-Series was specifically designed to be used in septic effluent and cistern pumping where maximum draw down is needed. The 20Series was built using 304 stainless steel and high-wear life thermoplastic ensuring corrosion resistance and longevity. Ater 20Series also has 5 stages for maximum shut-off head pressure of 170ft of head.

Internal diffuser design provides high performance and long life in harsh water conditions. The pump can pass solids up to 1/8 inch with no negative effect on the internal components. The unique hollow-wall design eliminates the need for an induction sleeve as the pump-end is on the bottom and the water passes past the motor on its way to the diffusers, cooling it continuously.

This makes the 20Series the most sought-after unit and highly versatile in application uses:

• Filtered effluent from aerobic septic systems
• Grey water pumping applications
• Filtered effluent service water pumping
• Water reclamation such as rain harvest basin pumping
• Agriculture and livestock water pumping

‍

‍

Key Features

• Gallons Per Minute: 20 GPM
• CSA Approved: Certified by the Canadian Standards Association for Safety and performance standards.
• Solid Handling Capability: Can pass solids up to 1/8-inch without issues.
• Built-in Check Valve: Prevents Backflow.
• High-Quality Materials: Internal components are molded from durable thermoplastics.
• Corrosion Resistance: Made of high-grade 304 stainless steel.
• 5 Diffusers: Enhance pump longevity.
• Voltage Options: Available with 115 VAC or 230 VAC, 1/2 h.p. motor.
• Heavy Duty Cord: Equipped with a 10 ft SJOW jacketed cord.

Technical Specifications

• Motor Power: 0.5 Horsepower (H.P.).
• Discharge Bearing: Made of Nylatron.
• Voltage: 115V/60Hz. or 230v/60Hz
• Maximum Head Pressure: 125 Feet.
• Maximum Flow Rate: 31 Gallons per Minute.
• Shell Material: 304 Stainless Steel.
• Suction Type: Bottom-Suction
• Discharge Thread: FNPT (Female National Pipe Thread).
• Discharge Diameter: 1.25 inches.

WARRANTY POLICY

ATER Company offers a 2-year warranty effective from the sale date. Be aware of the expiration date for claims. Contact us during business hours for warranty service. We assess claims individually and may provide spare parts, repair, or replace the unit, covering expenses for the approved solution.

‍
